Butterfly valves from Scheuch COMPONENTS
Professional use of butterfly valves
Butterfly valves are implemented to regulate the flow of dust and gases in ducts using a rotating valve blade.
With its extensive experience and expertise in developing and building butterfly valves for a wide range of materials, Scheuch COMPONENTS offers not only standard solutions but also industrial valves, flaps & dampers tailored to your company’s specific requirements.
Standard performance date
Max. Temperature: 300 °C
Specific requirements?
Alongside our standard portfolio, we also work with our customers to develop bespoke solutions.
Please get in touch – we will be happy to help.
Butterfly valves with individual nominal widths
In addition to the usual standard sizes, Scheuch COMPONENTS also produces shut-off devices with nominal widths that are adapted specifically to the conditions and requirements in question. The largest butterfly valves developed and built by our experts feature a diameter of 6.50 metres. Furthermore, they can tailor much more than just the nominal width to individual customer requirements. Whether it’s for standard systems or customized solutions, you will benefit from our company’s many years of experience in building industrial valves/flaps/dampers.
Mechanical, pneumatic or electric valve control

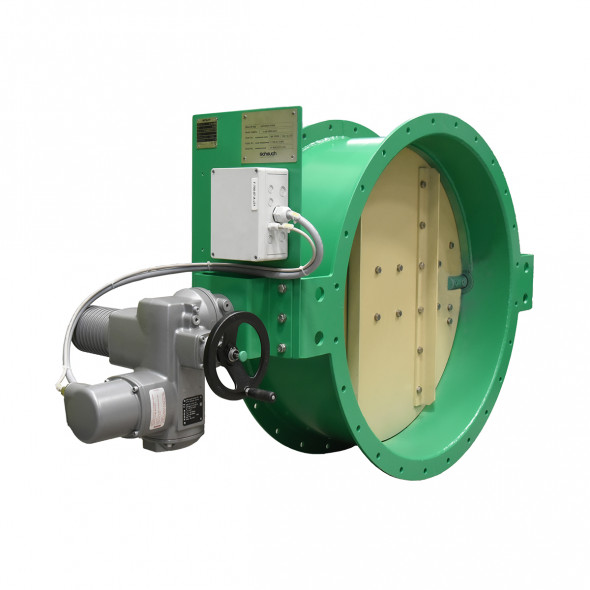

In the case of smaller nominal widths, the valve blade is normally controlled with a manual lever. With larger nominal widths, the valve blades are controlled using pneumatic or electric drives. The option which is ultimately selected for your application depends both on the nominal width of the butterfly valve and on the type and composition of the medium to be conveyed.
Extremely reliable and maintenance-free
Scheuch COMPONENTS butterfly valves are extremely reliable and maintenance-free – two properties which enable smooth and undisturbed operation. This is achieved, among other things, by incorporating maintenance-free components. Our solid-lubricated plain bearings feature special properties such as a low coefficient of friction and excellent chemical resistance. Another essential feature is that our butterfly valves can be used in a wide range of temperatures.
Stable casings ensure durable use
All Scheuch COMPONENTS industrial valves/flaps/dampers are made from high-quality sheet steel which ensures a long service life. Round forms are equipped with fixed flanges, while square forms are supported by a stable frame. All valves/flaps/dampers comply with DIN standards EN 12220 or 24193/R1-R3 and can therefore be integrated directly into pipe and channel systems. What’s more, all the casings and valve/flap/damper blades are designed to withstand temperatures up to 300 °C.
Leak-proof butterfly valves
Scheuch COMPONENTS pendulum flaps and butterfly valves are highly leak-proof. When the butterfly valves are closed, they are tight on 99.5 % of the valve surface. This means that the flow of conveyed media can be largely blocked if necessary.
To achieve this high value, our team implements various sealing materials which, like the geometry of the shut-off devices, are a key distinctive feature in butterfly valves. The following sealing materials are used: Glass fibre and Metals
Scheuch COMPONENTS – the right solution for any problem
Industrial plants need to overcome a whole host of challenges. In many of these cases, standard solutions will not get you very far. However, you can count on your reliable and expert partner, Scheuch COMPONENTS, to work closely with you to find the right solution for any problem. We develop and build butterfly valves that are perfectly tailored to your needs.
Our experts – who benefit from in-depth training as well as many years of Scheuch experience in the construction of industrial plants – are highly motivated to find the best solution for every new order that comes their way. We will tackle even the most complex of challenges with a great deal of enthusiasm and commitment. After all, each task that is completed to the satisfaction of our customers helps to expand our own expertise – and you will benefit from this as well!
Get in touch now to find professional solutions
If you too are looking for true experts in designing and building butterfly valves, then don’t hesitate to get in touch. We’re more than happy to show you our portfolio and demonstrate how we can help you overcome technical hurdles in your industrial plant. We look forward to showing you our impressive range of solutions and services.
